Principais características

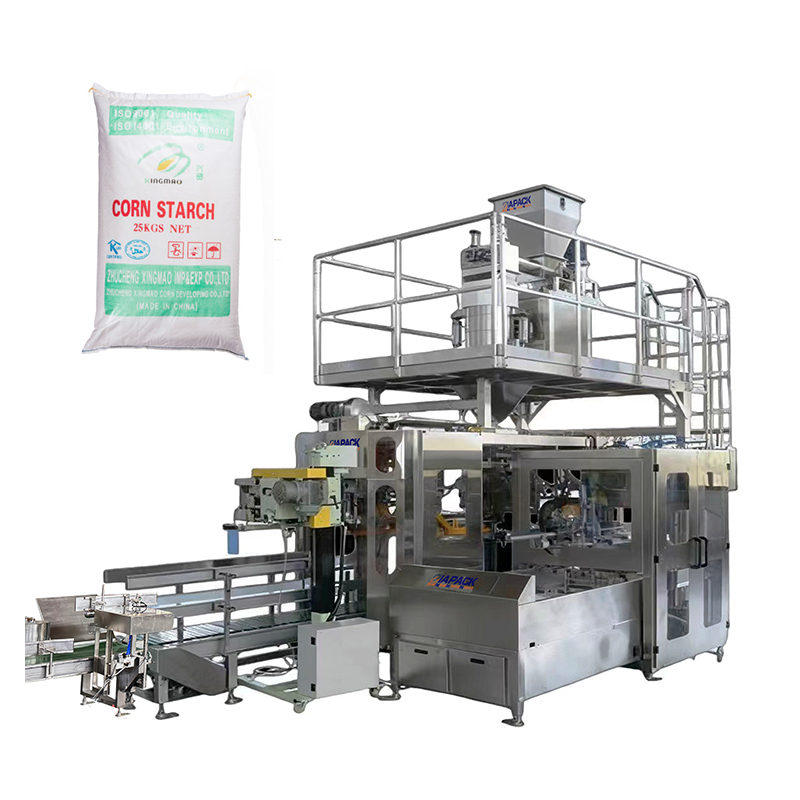

Automatic weighing, automatic bag loading, automatic bag sewing, no manual operation is required; Touch screen interface, simple and intuitive operation; The unit is composed of bag preparation warehouse, bag taking and bag handling device, bag loading manipulator, bag clamping and unloading device, bag holding pushing device, bag opening guiding device, vacuum system and control system;It has a wide adaptability to the packaging bag. The packaging machine adopts the bag picking method, that is, taking the bag from the bag storage, centering the bag, sending the bag forward, positioning the bag mouth, pre opening the bag, inserting the knife of the bag loading manipulator into the bag opening, and clamping the two sides of the bag mouth with air gripper on both sides, and finally loading the bag. This kind of bag loading method does not have high requirements on the size error of the bag manufacturing and the quality of the bag itself Low bag making cost; Compared with the pneumatic manipulator, the servo motor has the advantages of fast speed, smooth bag loading, no impact and long service life;
Hai dous microinterruptores instalados na posición de apertura do dispositivo de fixación da bolsa, que se usan para detectar se a boca da bolsa está completamente suxeita e se a abertura da bolsa está completamente aberta. Para garantir que a máquina de envasado non cometa erros, non derrame material ao chan, mellore a eficiencia do uso da máquina de envasado e o ambiente de traballo no lugar;
A válvula solenoide e outros compoñentes pneumáticos teñen un deseño selado, non a instalación exposta, pódense usar en ambientes de po, para garantir que o equipo teña unha longa vida útil.
Parámetros técnicos
| Modelo | ZLH50D |
| Modo de alimentación | Double horizontal screw feeding with weighing bucket |
| Peso de embalaxe | 25kg |
| Precisión de embalaxe | ≤±0.5-1% |
| Velocidade de embalaxe | 2-4 bags/min |
| Fonte de alimentación | 3P AC208-415V 50/60Hz |
| Potencia total | 5kw |
| Aire comprimido | 6 kg/cm2 0,3 cm3/min |
