Bolsa stabilo automática con máquina de envasado de etiquetas superiores
This machine is special design for make the gusset bag with flat bottom .After the full bag with product drop on this machine .This
machine will carry the bag ,go through one time bag mouth folding and then stick the label.The machine frame made by SUS304 .PLC and touch screen adopt by Siemens brand .And Pneumatic parts adopt SMC brand .Main Electrical components adopt Omron and Schneider brand.
machine will carry the bag ,go through one time bag mouth folding and then stick the label.The machine frame made by SUS304 .PLC and touch screen adopt by Siemens brand .And Pneumatic parts adopt SMC brand .Main Electrical components adopt Omron and Schneider brand.

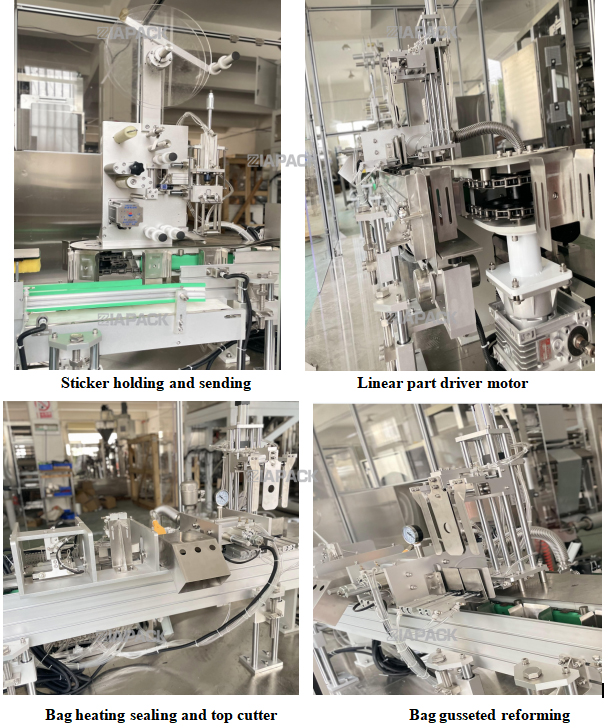

Working station
Bag forming -------------------------------------
Product filling ----------------------------------
Bag receive from VFFS packing machine ----
Bag folding and top pressing ------------------
Bag pre-sealing ---------------------------------
Bag folding and labeling -------------------
Output from Vacuum chamber ----------------
Bag top trimming -------------------------------
Vacuum Bag output-----------------------------
PRODUCT SPECIFICATIONS
Non | Elemento | Data | ||
1 | Peso de embalaxe | 100-500gram | 500-1000gram | 1-2 kg |
2 | Velocidade de embalaxe | 12-30bag/min | 8-20bag/min | 5-12bag/min |
3 | Consumo de enerxía | 15 kw | 20kw | |
4 | Ancho de película | 420 mm | 520mm | 720mm |
5 | Consumo de aire | 0.65cbm/min 8Bar | 0.85cbm/min 8Bar | 1cbm/min 8Bar |
6 | Peso da máquina | 2.5ton | 5.5ton | |
7 | Delivery dimention | 40 HQ | ||
8 | Install space | 5.8*2.5*3meter | 6.8*2.5*3meter |
