Máquina de ensacado de selado de recheo de bolsas vffs de pellets de madeira de 15 kg

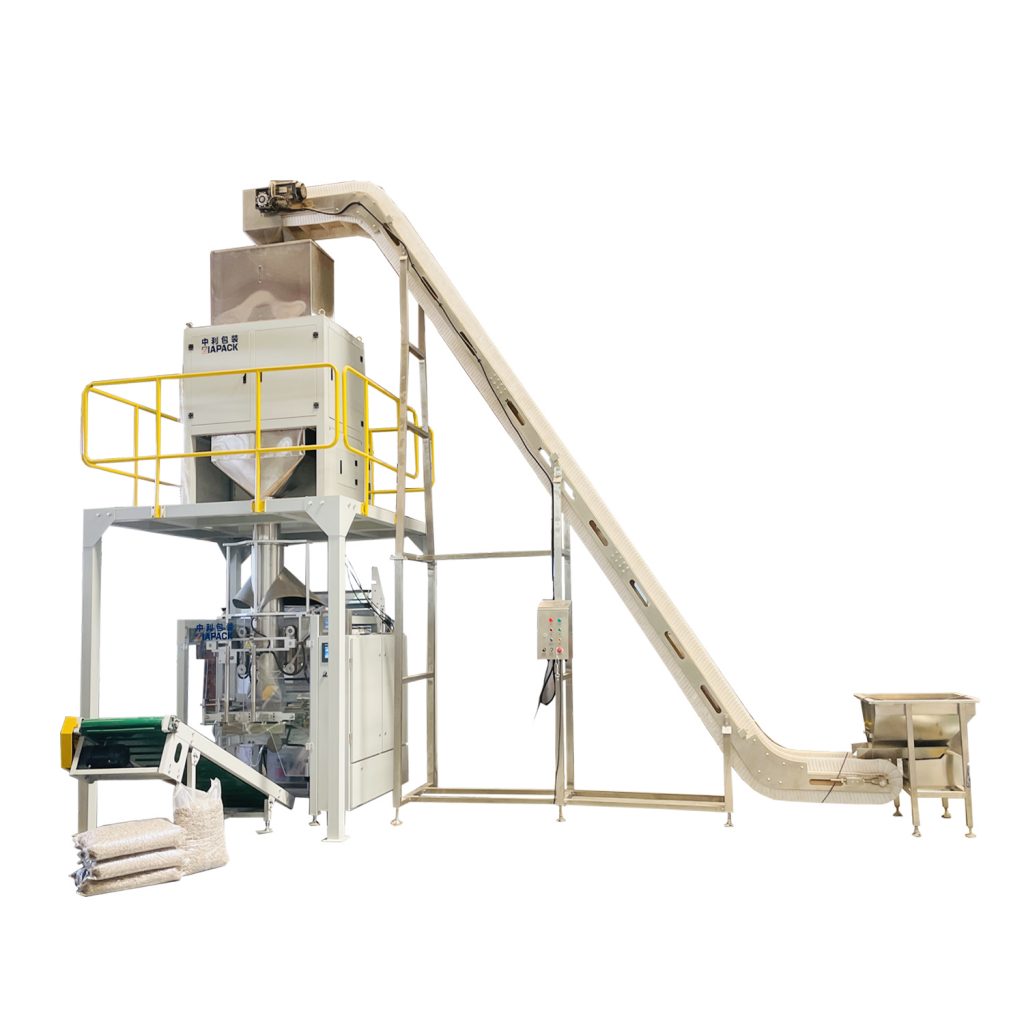

Automatic15-20 kg wooden pellets bag forming filling packaging machine

Introdución:

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Parámetros técnicos:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Requisito de aire comprimido: 0.6Mpa 0.65m³/min

Reel outer diameter: 450mm

Diámetro interior do núcleo: 75 mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Principais características e características:

• Unha ampla gama de bolsas: bolsas de almofada e de refuerzo.
• Alta velocidade: 20-50 bolsas/min
• Fácil de operar: controlador PLC e pantalla táctil en cor, indicación de fallo na pantalla táctil.
• Fácil de axustar: só uns 10 minutos para cambiar diferentes bolsas.
• Control de frecuencia: a velocidade pode ser axustada pola conversión de frecuencia dentro do intervalo.
• Alta Automatización: sen tripulación no proceso de pesagem e embalaxe, alarma da máquina automaticamente cando falla.
• Seguridade e hixiene:
• Sen película, a máquina alarmará.
• Alarma da máquina e deter cando a presión de aire é insuficiente.
• Gardas de seguridade con interruptores de seguridade, alarma da máquina e parada cando os gardas de seguridade están abertos.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

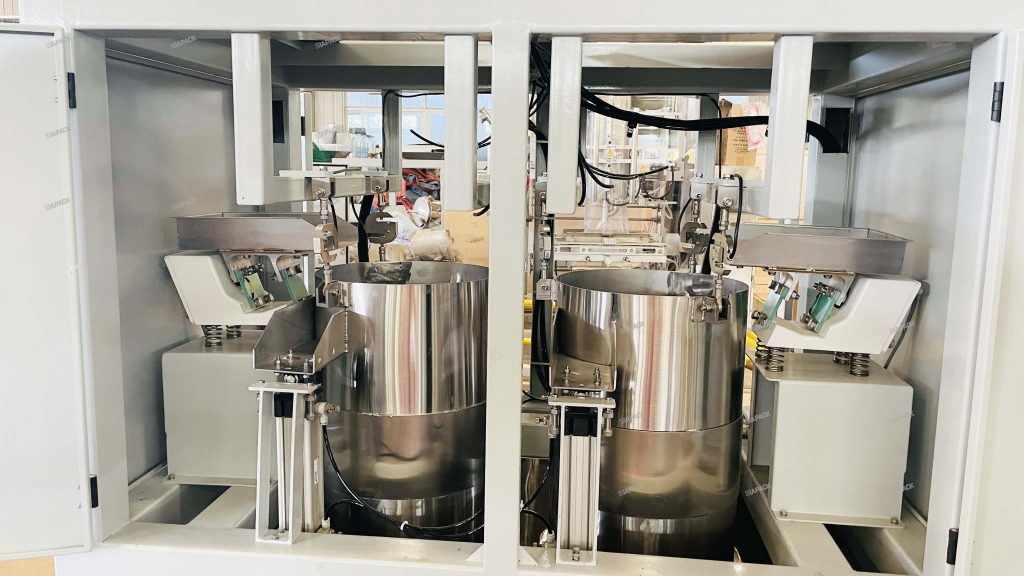

• ZLC2-15k double bucket weighing machine

  Introdución:

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Características:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
